型號：LSQ-S5_LSQ-S5C推拉式液壓快速接頭

產品詳情

描述：

LSQ-S5/LSQ-S5C推拉式液壓快速接頭
應用：LSQ-S5/LSQ-S5C系列廣泛應用于各種工業(yè)用途，用于建筑設備、森林設備、農業(yè)機械及液壓機具

技術規(guī)范：

規(guī)格(英寸)	1/2
額定壓力(PSI)	3000
額定流量(GPM)	12
溫度范圍(標準密封圈)	-20℃至+120℃
標準密封圈材料	丁腈橡膠NBR

LSQ-S5和LSQ-S5C系列接頭具有以下特征：
1、在接頭被夾緊或以艙壁形式安裝時，雙作用套筒可以用單手操作。
2、接頭斷開時，閥芯自動閉合，防止泄漏。
3、接頭連接后，閥自動開啟，在額定工作范圍內，始終保持流體的暢通。
4、關鍵部件經過感應淬火，所以耐用性好。
5、可靠的球鎖機構將相匹配的兩半部分結合在一起。
6、母插座和公插頭采用實心的棒料精密制造。
7、本接頭符合ISO5675標準。
8、并與下列產品互換：美國派克(PARKER)4250系列、意大利快事達(FASTER)CPV-CNV系列

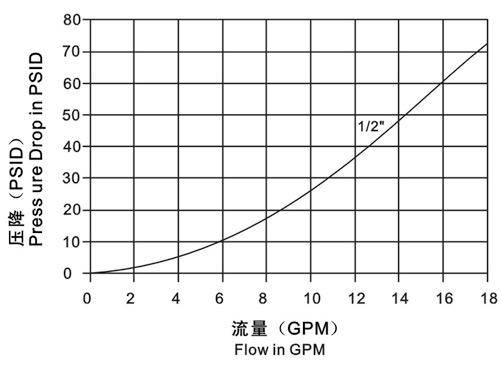

性能：測試液體油-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

LSQ-S5系列(1/2")

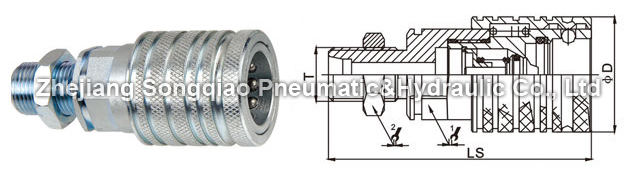

母插座

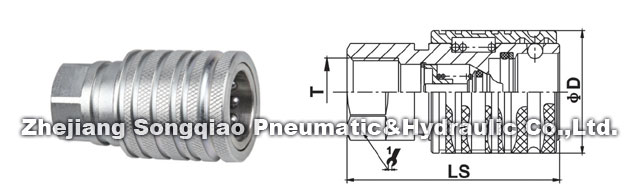

ISO	PARTNO.	LS	￠ D	HEX1	T
12.5	LSQ-S5-04SF3/8	66	38	27	3/8BSP NPT3/8
12.5	LSQ-S5-04SF1/2	66	38	27	1/2BSP NPT1/2
12.5	LSQ-S5-04SF3/4	69	38	34	3/4BSP NPT3/4
12.5	LSQ-S5-04SFM14	66	38	27	M14*1.5
12.5	LSQ-S5-04SFM16	66	38	27	M16*1.5
12.5	LSQ-S5-04SFM18	66	38	27	M18*1.5
12.5	LSQ-S5-04SFM22	66	38	27	M22*1.5

公插頭

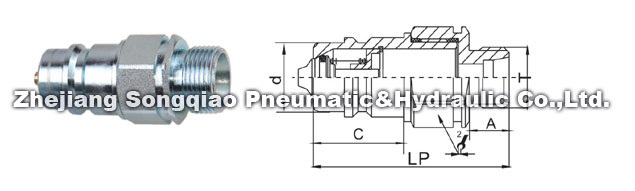

ISO	PARTNO.	LP	d	C	HEX2	T

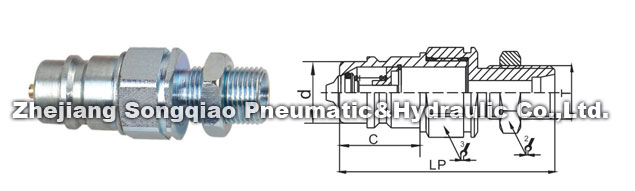

12.5	LSQ-S5-04PF3/8	61.5	20.5	27	27	3/8BSP NPT3/8
12.5	LSQ-S5-04PF1/2	44	20.5	27	27	1/2BSP NPT1/2
12.5	LSQ-S5-04PF3/4	64.5	20.5	34	34	3/4BSP NPT3/4
12.5	LSQ-S5-04PFM14	61.5	20.5	27	27	M14*1.5
12.5	LSQ-S5-04PFM16	61.5	20.5	27	27	M16*1.5
12.5	LSQ-S5-04PFM18	61.5	20.5	27	27	M18*1.5
12.5	LSQ-S5-04PFM22	44	20.5	27	27	M22*1.5

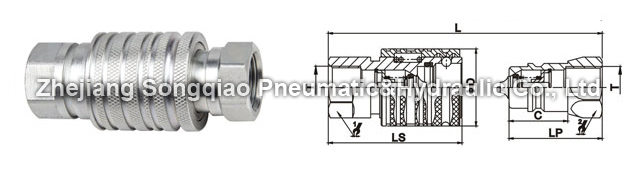

連接裝配器

ISO	PARTNO.	L	￠ D	HEX1	HEX2	T

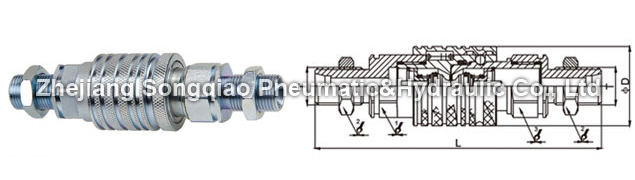

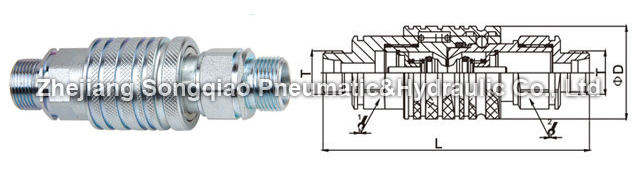

12.5	LSQ-S5-04F3/8	105.5	38	27	27	3/8BSP NPT3/8
12.5	LSQ-S5-04F1/2	105.5	38	27	27	1/2BSP NPT1/2
12.5	LSQ-S5-04F3/4	105.5	38	34	34	3/4BSP NPT3/4
12.5	LSQ-S5-04FM14	105.5	38	27	27	M14*1.5
12.5	LSQ-S5-04FM16	105.5	38	27	27	M16*1.5
12.5	LSQ-S5-04FM18	105.5	38	27	27	M18*1.5
12.5	LSQ-S5-04FM22	105.5	38	27	27	M22*1.5

|--LSQ-S5 Socket--|

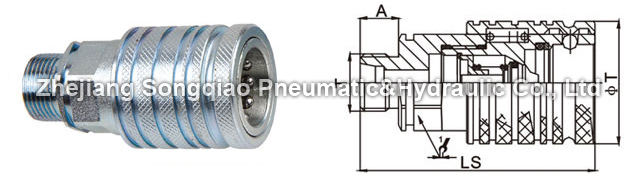

ISO	PARTNO.	LS	￠ D	HEX1	A	T
12.5	LSQ-S5-04SM8L	73.5	38	27	12	M14*1.5
12.5	LSQ-S5-04SM10L	73.5	38	27	12	M16*1.5
12.5	LSQ-S5-04SM12L	73.5	38	27	12	M18*1.5
12.5	LSQ-S5-04SM15L	75.5	38	27	14	M22*1.5
12.5	LSQ-S5-04SM18L	75.5	38	27	14	M26*1.5
12.5	LSQ-S5-04SM10S	73.5	38	27	12	M18*1.5
12.5	LSQ-S5-04SM12S	73.5	38	27	12	M20*1.5
12.5	LSQ-S5-04SM14S	75.5	38	27	14	M22*1.5
12.5	LSQ-S5-04SM16S	75.5	38	27	14	M24*1.5
12.5	LSQ-S5-04SM20S	77.5	38	30	16	M30*2

|--LSQ-S5 Plug--|

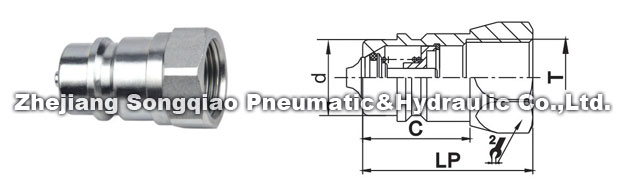

ISO	PARTNO.	LP	d	C	HEX1	A	T
12.5	LSQ-S5-04PM8L	58.5	20.5	27	27	12	M14*1.5
12.5	LSQ-S5-04PM10L	58.5	20.5	27	27	12	M16*1.5
12.5	LSQ-S5-04PM12L	58.5	20.5	27	27	12	M18*1.5
12.5	LSQ-S5-04PM15L	60.5	20.5	27	27	14	M22*1.5
12.5	LSQ-S5-04PM18L	60.5	20.5	27	27	14	M26*1.5
12.5	LSQ-S5-04PM10S	58.5	20.5	27	27	12	M18*1.5
12.5	LSQ-S5-04PM12S	58.5	20.5	27	27	12	M20*1.5
12.5	LSQ-S5-04PM14S	60.5	20.5	27	27	14	M22*1.5
12.5	LSQ-S5-04PM16S	60.5	20.5	27	27	14	M24*1.5
12.5	LSQ-S5-04PM20S	62.5	20.5	27	30	16	M30*2

|--LSQ-S5 Coupling Fitting--|

ISO	PARTNO.	L	D	HEX1	HEX2	T
12.5	LSQ-S5-04-8L	109.5	38	27	27	M14*1.5
12.5	LSQ-S5-04-10L	109.5	38	27	27	M16*1.5
12.5	LSQ-S5-04-12L	109.5	38	27	27	M18*1.5
12.5	LSQ-S5-04-15L	113.5	38	27	27	M22*1.5
12.5	LSQ-S5-04-18L	113.5	38	27	27	M26*1.5
12.5	LSQ-S5-04-10S	109.5	38	27	27	M18*1.5
12.5	LSQ-S5-04-12S	109.5	38	27	27	M20*1.5
12.5	LSQ-S5-04-14S	113.5	38	27	27	M22*1.5
12.5	LSQ-S5-04-16S	113.5	38	27	27	M24*1.5
12.5	LSQ-S5-04-20S	115.5	38	30	30	M30*2

|--LSQ-S5C Socket--|

ISO	PARTNO.	LP	d	C	HEX1	HEX3	T
12.5	LSQ-S5C-04PM8L	72	20.5	27	19	27	M14*1.5
12.5	LSQ-S5C-04PM10L	72	20.5	27	24	27	M16*1.5
12.5	LSQ-S5C-04PM12L	72	20.5	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM15L	74	20.5	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM18L	74	20.5	27	30	27	M26*1.5
12.5	LSQ-S5C-04PM10S	72	20.5	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM12S	72	20.5	27	27	27	M20*1.5
12.5	LSQ-S5C-04PM14S	74	20.5	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM16S	74	20.5	27	30	27	M24*1.5
12.5	LSQ-S5C-04PM20S	81	20.5	27	36	30	M30*2

|--LSQ-S5C Plug--|

ISO	PARTNO.	LP	C	HEX1	HEX3	T
12.5	LSQ-S5C-04PM8L	72	27	19	27	M14*1.5
12.5	LSQ-S5C-04PM10L	72	27	24	27	M16*1.5
12.5	LSQ-S5C-04PM12L	72	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM15L	74	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM18L	74	27	30	27	M26*1.5
12.5	LSQ-S5C-04PM10S	72	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM12S	72	27	27	27	M20*1.5
12.5	LSQ-S5C-04PM14S	74	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM16S	74	27	30	27	M24*1.5
12.5	LSQ-S5C-04PM20S	81	27	36	30	M30*2

|--LSQ-S5C Coupling Fitting--|

ISO	PART NO.	L	￠ D	HEX1	HEX2	HEX3	T
12.5	LSQ-S5C-04-8L	137.5	38	27	19	27	M14*1.5
12.5	LSQ-S5C-04-10L	137.5	38	27	24	27	M16*1.5
12.5	LSQ-S5C-04-12L	137.5	38	27	24	27	M18*1.5
12.5	LSQ-S5C-04-15L	143.5	38	27	27	27	M22*1.5
12.5	LSQ-S5C-04-18L	143.5	38	27	30	27	M26*1.5
12.5	LSQ-S5C-04-10S	137.5	38	27	24	27	M18*1.5
12.5	LSQ-S5C-04-12S	137.5	38	27	27	27	M20*1.5
12.5	LSQ-S5C-04-14S	137.5	38	27	27	27	M22*1.5
12.5	LSQ-S5C-04-16S	143.5	38	27	30	27	M24*1.5
12.5	LSQ-S5C-04-20S	145.5	38	30	36	30	M30*2
