LSQ-CVV螺紋鎖緊式液壓快速接頭
應用:LSQ-CVV系列接頭應用于移動式工程設備(挖掘機)、車輛、液壓設備、鉆機。
技術規范:
規格(英寸) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
額定壓力(PSI) | 5000 | 5000 | 5000 | 5000 | 5000 |
額定流量(GPM) | 3 | 6 | 12 | 28 | 50 |
溫度范圍(標準密封圈) | -20℃至+120℃ | ||||
標準密封圈材料 | 丁腈橡膠NBR |

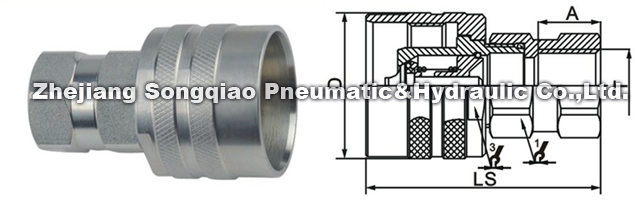

PART NO. | LS | D | HEX1 | HEX3 | A | T |
LSQ-CVV-02SF | 58.6 | Φ34 | S19六角 | S30對邊 | 13 | G1/4 NPT1/4 |
LSQ-CVV-03SF | 60.8 | Φ34 | S22六角 | S30對邊 | 13 | G3/8 NPT3/8 |
LSQ-CVV-04SF | 67.7 | Φ42 | S27六角 | S36對邊 | 18 | G1/2 NPT1/2 |
LSQ-CVV-06SF | 73.5 | Φ48 | S36六角 | S41對邊 | 18 | G3/4 NPT3/4 |
LSQ-CVV-08SF | 94.5 | Φ56.5 | S41六角 | S51對邊 | 24.5 | G1 NPT1 |

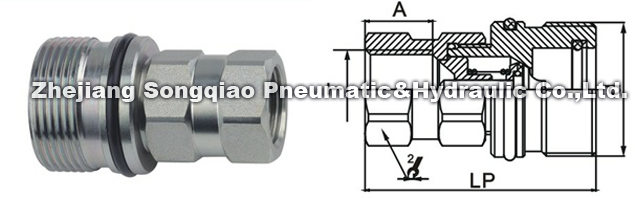

PARTNO. | LP | d | HEX2 | A | T |
LSQ-CVV-02PF | 60 | M24*2 | S19六角 | 13 | G1/4 NPT1/4 |
LSQ-CVV-03PF | 55.3 | M28*2 | S22六角 | 13 | G3/8 NPT3/8 |
LSQ-CVV-04PF | 61.5 | M36*2 | S27六角 | 18 | G1/2 NPT1/2 |
LSQ-CVV-06PF | 83.5 | M42*2 | S36六角 | 18 | G3/4 NPT3/4 |
LSQ-CVV-08PF | 94.5 | M48*3 | S41六角 | 24.5 | G1 NPT1 |
PARTNO. | L | D | HEX1 | HEX2 | HEX3 | T |
LSQ-CVV-02 | 92.6 | Φ34 | S19六角 | S19六角 | S30對邊 | G1/4 NPT1/4 |
LSQ-CVV-03 | 89.9 | Φ34 | S22六角 | S22六角 | S30對邊 | G3/8 NPT3/8 |
LSQ-CVV-04 | 103 | Φ42 | S27六角 | S27六角 | S36對邊 | G1/2 NPT1/2 |
LSQ-CVV-06 | 125 | Φ48 | S36六角 | S36六角 | S41對邊 | G3/4 NPT3/4 |
LSQ-CVV-08 | 155 | Φ56.5 | S41六角 | S41六角 | S50對邊 | G1 NPT1 |
