LSQ-Q2模具專用快速接頭(中體)(銅)
→產品描述:特別為冷卻系統和注射模具設計。
→技術優勢:結構簡單,大流量,無閥設計。
→產品應用:模具行業,冷卻系統。
→互換性:派克(PARKER)MOLDMATE系列。
→工作壓力:1.5Mpa
→工作溫度:-15℃+150℃

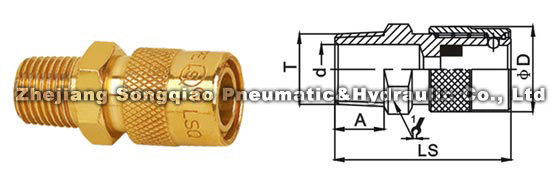

PARTNO. | LS | ¢D | HEX1 | A | T | d |
LSQ-Q2-03SM | 49 | 24 | 22 | 13 | ZG3/8 | ¢10 |
LSQ-Q2-04SM | 49 | 24 | 22 | 14 | ZG1/2 | ¢14 |

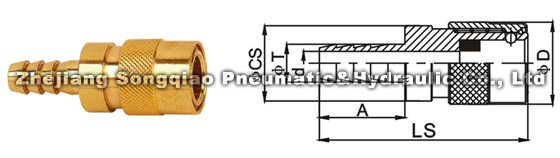

PARTNO. | LS | ¢D | ¢CS | A | ¢T | d |
LSQ-Q2-03SH | 61 | 24 | 22 | 25 | 11 | ¢7 |
LSQ-Q2-04SH | 61 | 24 | 22 | 25 | 13.5 | ¢9.5 |

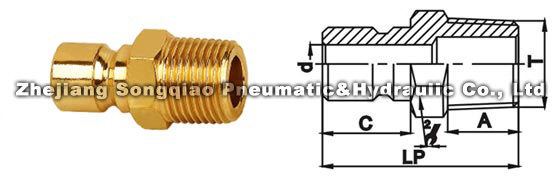

PARTNO. | LP | C | HEX2 | A | T | d |
LSQ-Q2-03PM | 36 | 16.2 | 17 | 13 | ZG3/8 | ¢7 |
LSQ-Q2-04PM | 38 | 16.2 | 22 | 16 | ZG1/2 | ¢7 |

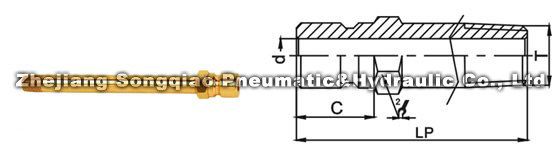

PARTNO. | LP | C | HEX2 | T | d |
LSQ-Q2-03PM | 75 | 16.2 | 17 | ZG3/8 | ¢7 |
LSQ-Q2-03PM | 100 | 16.2 | 17 | ZG3/8 | ¢7 |
LSQ-Q2-03PM | 125 | 16.2 | 17 | ZG3/8 | ¢7 |
LSQ-Q2-03PM | 150 | 16.2 | 17 | ZG3/8 | ¢7 |

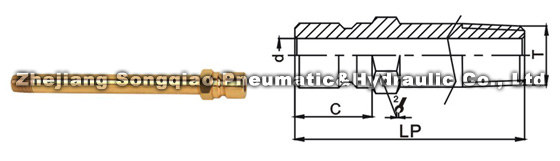

PARTNO. | LP | C | HEX2 | T | d |
LSQ-Q2-04PM | 75 | 16.2 | 22 | ZG1/2 | ¢7 |
LSQ-Q2-04PM | 100 | 16.2 | 22 | ZG1/2 | ¢7 |
LSQ-Q2-04PM | 125 | 16.2 | 22 | ZG1/2 | ¢7 |
LSQ-Q2-04PM | 150 | 16.2 | 22 | ZG1/2 | ¢7 |
