型號：LSQ-CC開閉式氣動快速接頭
產品詳情
描述：
LSQ-CC開閉式氣動快速接頭（銅）
→產品描述：多組規格，使用介質用顏色區分，藍色用于二氧化碳，紅色用于乙炔，綠色用于氧氣，無塑料顏色套的用于水和空氣。
→技術優勢：對現場多種介質管路的接頭用顏色區分，而且每種設計尺寸不同，徹底防止誤插入而引起的混亂，靈活易捷，確保安全。
→產品應用：造船行業，船務維修行業以及各種需避免介質混亂誤插隊工業系統。
→工作壓力：1.0Mpa
→工作溫度：-20℃+120℃

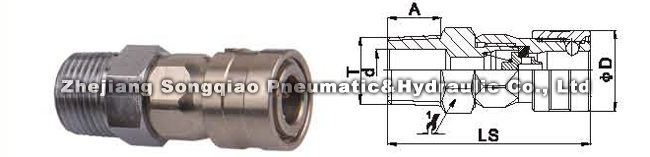

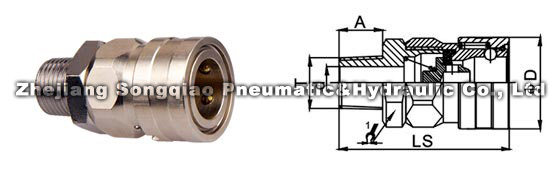

| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-CC1-SM | 66.2 | 36 | 30 | 17 | ZG1/2 | ￠13 |

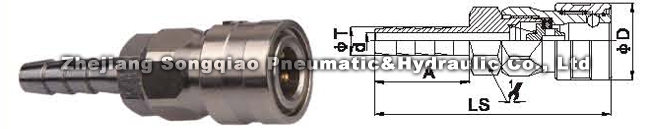

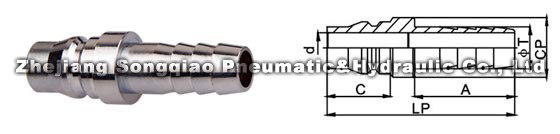

| PARTNO. | LS | A | C | CP | ￠T | D |
| LSQ-CC3-PH | 65.6 | 34 | 23.5 | ￠22 | 14 | ￠12.8 |

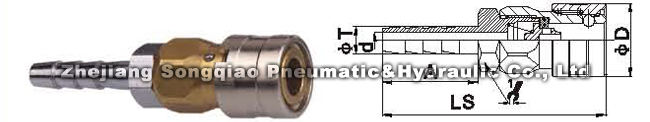

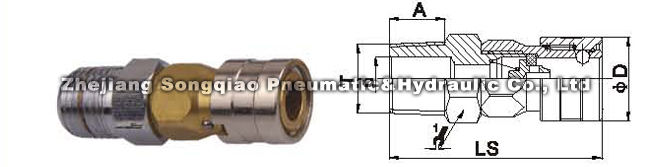

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC4-SH | 80 | 30 | 24 | 36 | 13.5 | ￠9.5 |

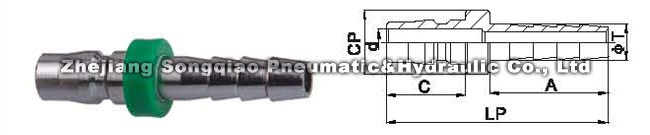

| PARTNO. | LP | A | C | CP | ￠T | d |
| LSQ-CC2-PH | 63 | 33.5 | 21.5 | ￠20 | 14 | ￠10 |

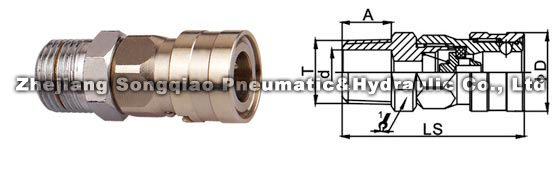

| PARTNO. | LP | ￠D | HEX1 | A | T | d |
| LSQ-CC5-SM | 59 | 25.5 | 22 | 16 | ZG1/2 | ￠14 |

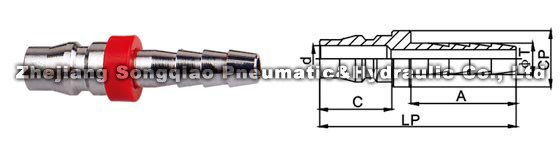

| PARTNO. | LP | A | C | CP | ￠T | d |
| LSQ-CC6-PH | 56 | 30 | 20.5 | ￠22 | 9 | ￠7.5 |

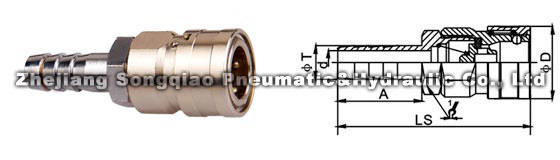

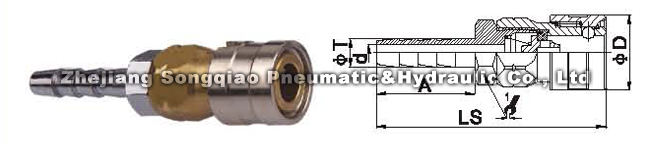

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC7-SH | 72.7 | 24 | 17 | 31 | 8.5 | ￠5 |
| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-CC10-SH | 72.7 | 24 | 17 | 31 | 8.5 | ￠5 |
| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-CC8-SM | 60.5 | 24 | 22 | 16 | zg1/2 | ￠12.5 |

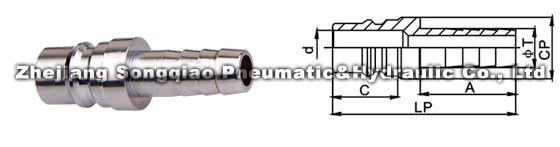

| PARTNO. | LP | A | C | CP | ￠T | D |
| LSQ-CC9-PH | 56 | 30 | 19.8 | ￠16 | 9 | ￠6.3 |

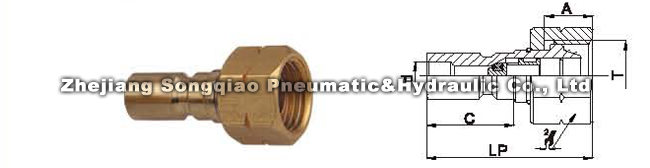

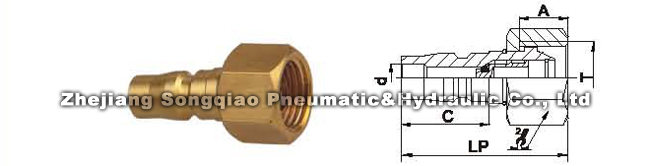

| PARTNO. | LP | A | C | HEX2 | T | D |
| LSQ-CC14-PF | 37.8 | 11 | 19.8 | 19 | M16*1.5左 | ￠6.3 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC13-SH | 74.5 | 24 | 17 | 30 | 8.5 | ￠5 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC11-SM | 60.5 | 24 | 22 | 16 | zg1/2 | ￠12.5 |
| PARTNO. | LP | A | C | CP | ￠T | D |
| LSQ-CC12-PH | 56 | 30 | 20 | ￠16 | 9 | ￠6.4 |
| PARTNO. | LP | A | C | HEX1 | T | D |
| LSQ-CC15-PF | 38 | 11 | 20 | 19 | M16*1.5 | ￠6.4 |
