LSQ-315 氣動快速接頭(碳鋼)
→產品描述:有效通徑7.5毫米,日本標準
→技術優勢:超大流量閥,單手操作。
→產品應用:氣動工具,汽車工業,壓縮空氣,工程配套。
→互換性:日東(NITTO)HI-COUPLA系列,希恩(CEJN)315系列利達時(RECTUS)13KA系列。
→工作壓力:1.6Mpa
→工作溫度:-20℃+120℃
>

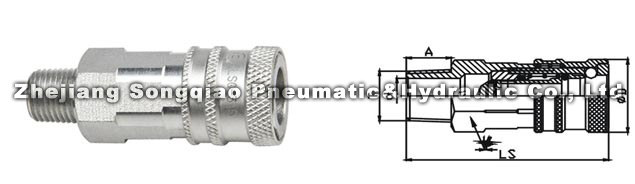

PART NO. | LS | ¢D | HEX1 | A | T | d |
LSQ-315-02SM | 62.8 | 23.3 | 20 | 13 | ZG1/4 | ¢7.8 |
LSQ-315-03SM | 60.8 | 23.3 | 20 | 13 | ZG3/8 | ¢11.3 |
>

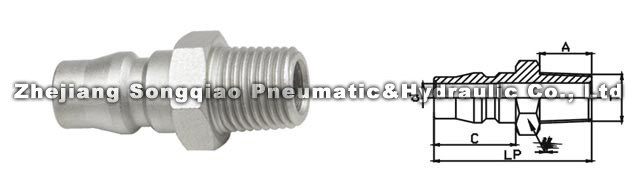

PART NO. | LP | C | HEX1 | A | T | d |
LSQ-315-02PM | 39.5 | 20.5 | 17 | 13 | ZG1/4 | ¢7.5 |
LSQ-315-03PM | 40 | 20.5 | 17 | 13 | ZG3/8 | ¢7.5 |
>
PART NO. | LS | ¢D | HEX1 | A | T | d |
LSQ-315-02SF | 57.7 | 23.3 | 20 | 13 | G1/4 | ¢14 |
LSQ-315-03SF | 57.7 | 23.3 | 22 | 12 | G3/8 | ¢14 |
>
PART NO. | LP | C | HEX1 | A | T | d |
LSQ-315-02PF | 36.5 | 20.5 | 17 | 13 | G1/4 | ¢7.5 |
LSQ-315-03PF | 36.5 | 20.5 | 19 | 13 | G3/8 | ¢7.5 |
>
PART NO. | LS | ¢D | HEX1 | A | ¢T | d |
LSQ-315-01SH | 67.7 | 23.3 | 20 | 20 | 7 | ¢4 |
LSQ-315-02SH | 72.7 | 23.3 | 20 | 25 | 9 | ¢5.5 |
LSQ-315-03SH | 72.7 | 23.3 | 20 | 25 | 11 | ¢7.5 |
PART NO. | LP | D | ¢ CP | A | ¢ T | d |
LSQ-315-01PH | 43 | 20.5 | 15 | 20 | 7 | ¢ 7.5 |
LSQ-315-02PH | 48 | 20.5 | 15 | 25 | 9 | ¢ 7.5 |
LSQ-315-03PH | 48 | 20.5 | 15 | 25 | 11 | ¢ 7.5 |
