LSQ-E開閉式氣動快速接頭(黃銅)
→產品描述:單手操作,單開閉閥。
→技術優勢:單手操作,大流量。
→產品應用:氣動工具,測量和控制設備,壓縮空氣。
→互換性:利達時(RECTUS)17KA系列。
→工作壓力:1.0Mpa
→工作溫度:-20℃+100℃
PART NO. | LS | D | HEX1 | A | T | d |
LSQ-17-02SM | 62.5 | 23.3 | 19 | 13 | ZG1/4 | 7 |
LSQ-17-03SM | 59.5 | 23.3 | 19 | 13 | ZG3/8 | 11 |
LSQ-17-04SM | 60 | 23.3 | 22 | 14 | ZG1/3 | 14 |

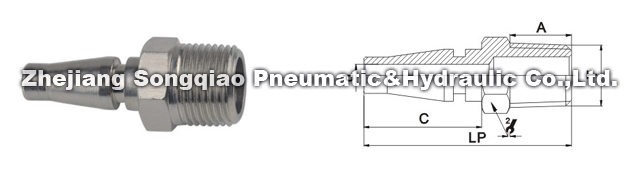

PART NO. | LP | D | HEX1 | A | T | d |
LSQ-17-02PM | 44 | 25 | 14 | 13 | ZG1/4 | 4.6 |
LSQ-17-03PM | 44.5 | 25 | 17 | 13 | ZG3/8 | 4.6 |

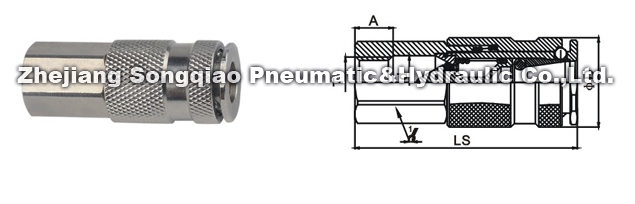

PART NO. | LS | D | HEX1 | A | T | d |
LSQ-17-02SF | 58 | 23.3 | 19 | 10 | G1/4 | 14 |
LSQ-17-03SF | 57 | 23.3 | 19 | 9 | G3/8 | 14 |
LSQ-17-04SF | 60 | 23.3 | 24 | 12 | G1/2 | 14 |

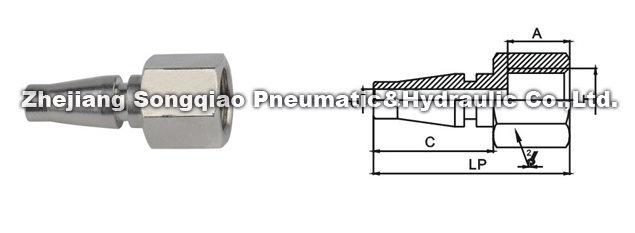

PART NO. | LP | D | HEX1 | A | T | d |
LSQ-17-02PF | 41 | 25 | 17 | 13 | G1/4 | 4.6 |
LSQ-17-03PF | 41 | 25 | 19 | 13 | G3/8 | 4.6 |

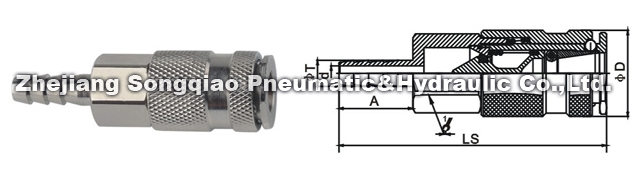

PART NO. | LS | D | HEX1 | A | T | d |
LSQ-17-01SH | 72.5 | 23.3 | 19 | 20 | 7 | 4 |
LSQ-17-02SH | 76 | 23.3 | 19 | 25 | 9 | 5 |
LSQ-17-03SH | 76 | 23.3 | 19 | 25 | 11 | 7.5 |

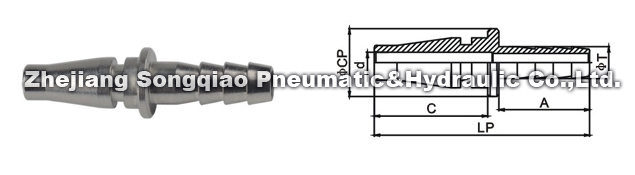

PART NO. | LP | D | HEX1 | A | T | d |
LSQ-17-01PH | 47.5 | 25 | 15 | 20 | 7 | 4.6 |
LSQ-17-02PH | 52.5 | 25 | 15 | 25 | 9 | 4.6 |
LSQ-17-03PH | 52.5 | 25 | 15 | 25 | 11 | 4.6 |
