LSQ-DG單手半自動氣動快速接頭(黃銅)
→產品描述:?jiǎn)问植僮?,歐洲最為廣泛使用的連接頭型式。
→技術優勢:?jiǎn)问植僮?,廣泛的互換性,多種連接備選。
→產品應用:氣動工具,實驗室,測量和控制設備,機械設備。
→互換性:希恩(CEJN)320系列、利達時(RECTUS)25KA與26KA系列。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

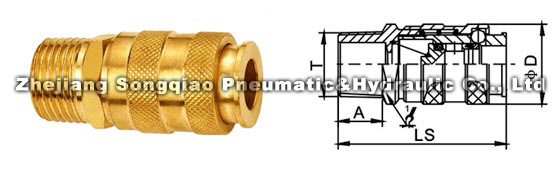

PARTNO. | LS | ¢D | HEX1 | A | T |
LSQ-DG-02SM | 52.5 | 25 | 22 | 13 | 1/4 |
LSQ-DG-03SM | 52.5 | 25 | 22 | 13 | 3/8 |
LSQ-DG-04SM | 54.4 | 25 | 22 | 14 | 1/2 |

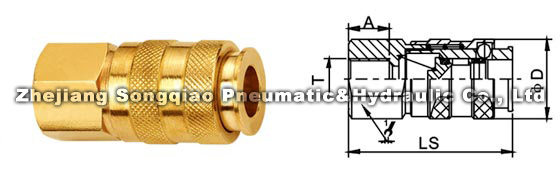

PARTNO. | LS | ¢D | HEX1 | A | T |
LSQ-DG-02SF | 52.5 | 25 | 22 | 13 | 1/4 |
LSQ-DG-03SF | 52.5 | 25 | 22 | 13 | 3/8 |
LSQ-DG-04SF | 53.5 | 25 | 24 | 14 | 1/2 |

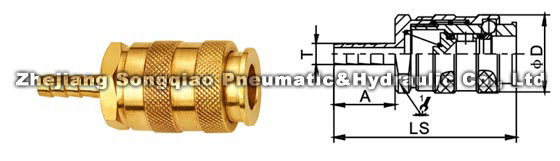

PARTNO. | LS | ¢D | HEX1 | A | T |
LSQ-DG-02SH | 64.5 | 25 | 22 | 25 | 9 |
LSQ-DG-03SH | 69.5 | 25 | 22 | 30 | 10.5 |
LSQ-DG-04SH | 69.5 | 25 | 22 | 30 | 13 |
PARTNO. | LP | C | HEX2 | A | T | d |
LSQ-DG-02PM | 40 | 21 | 14 | 13 | 1/4 | 7 |
LSQ-DG-03PM | 40 | 21 | 17 | 13 | 3/8 | 7 |
LSQ-DG-04PM | 42 | 21 | 22 | 14 | 1/2 | 7 |

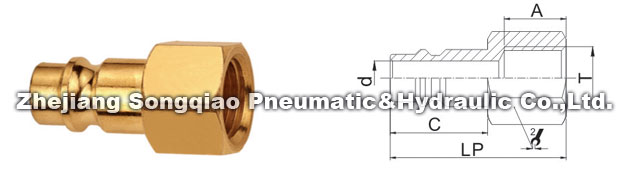

PARTNO. | LP | C | HEX2 | A | T | d |
LSQ-DG-02PF | 37 | 21 | 17 | 13 | 1/4 | 7 |
LSQ-DG-03PF | 38 | 21 | 19 | 13 | 3/8 | 7 |
LSQ-DG-04PF | 38 | 21 | 24 | 14 | 1/2 | 7 |

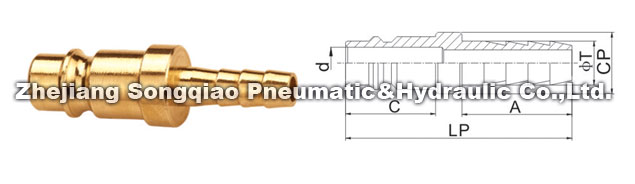

PARTNO. | LP | C | CP | A | T | d |
LSQ-DG-02PH | 51 | 21 | ¢14 | 25 | 9 | 7 |
LSQ-DG-03PH | 56 | 21 | ¢14 | 30 | 10.5 | 7 |
LSQ-DG-04PH | 56 | 21 | ¢14 | 30 | 13 | 7 |
