LAO單手半自動氣動快速接頭(碳鋼)
→產品描述:單手操作,瑞士應用廣泛。
→技術優勢:單手操作,鋼銷鎖緊設計。
→產品應用:氣動工具,生產和裝配線,機械設備。
→互換性:派克(PARKER)50系列、利達時(RECTUS)22KA系列、希恩(CEJN)300系列。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

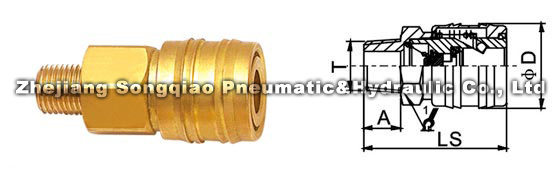

PARTNO. | LS | ¢D | HEX1 | A | T |
LAO-02SM | 46 | 26.8 | 22 | 11.5 | 1/4 |
LAO-03SM | 47 | 26.8 | 22 | 12.5 | 3/8 |
PARTNO. | LS | ¢D | HEX1 | A | T |
LAO-02SF | 43.5 | 26.8 | 22 | 9 | 1/4 |
LAO-03SF | 43.5 | 26.8 | 22 | 11 | 3/8 |

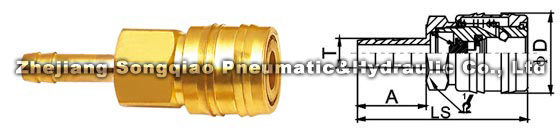

PARTNO. | LS | ¢D | HEX1 | A | T |
LAO-02SH | 57.5 | 26.8 | 22 | 25 | 7 |
LAO-03SH | 57.5 | 26.8 | 22 | 25 | 9 |
PARTNO. | LP | C | HEX2 | A | T | d |
LAO-02PM | 40.5 | 22 | 14 | 11.5 | 1/4 | 5.5 |
LAO-03PM | 40.5 | 22 | 17 | 12.5 | 3/8 | 5.5 |
PARTNO. | LP | C | HEX2 | A | T | d |
LAO-02PF | 35 | 22 | 17 | 9 | 1/4 | 5.5 |
LAO-03PF | 36 | 22 | 19 | 11 | 3/8 | 5.5 |
PARTNO. | LP | C | CP | A | T | d |
LAO-02PH | 48.5 | 22 | 12 | 25 | 7 | 5.5 |
LAO-03PH | 48.5 | 22 | 12 | 25 | 9 | 5.5 |
